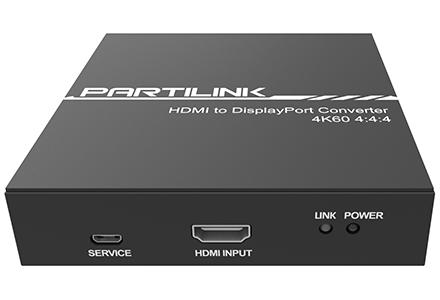

HDMI 2.0 to DisplayPort 1.2a Converter
-
P4K2-H1D2
P4K2-H1D2 is a HDMI 2.0 to DisplayPort 1.2a convertor/ splitter which provides 1 HDMI input and 2 DisplayPort outputs. H4K2-HD supports resolution up to 4Kx2K@60 4:4:4 color sampling.
P4K2-H1D2 is a HDMI 2.0 to DisplayPort 1.2a converter which provides 1 HDMI input and 2 DisplayPort outputs. H4K2-H1D2 supports resolution up to 4Kx2K@60 4:4:4 color sampling.
FEATURES
- DisplayPort 1.2a & HDMI 2.0 compliant
- HDMI input supports video bandwidth up to 18Gbps.
- Support HDCP 1.4 / 2.2
- DisplayPort output supports link rate RBR/HBR/HBR2
- Connect a variety of HDMI 2.0 sources to DisplayPort 1.2 display.
- HDMI 2.0 to 2-port DP 1.2a splitter
- Convert HDMI 2.0 to DP 1.2a input devices as AV source
Application
- Hospital monitor comes with DisplayPort input only, this converter allows to use HDMI source in Medical Site.
- Commercial display that does not have HDMI inputs in Commercial Site
- Corporate conference room and huddle spaces that rely on a projector with DisplayPort inputs in Conference Site
| MODEL NO. | P4K2-H1D2 |
| DESCRIPTION | HDMI 2.0 to DisplayPort 1.2a Converter |

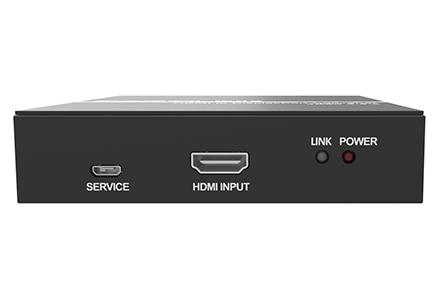

| INPUT INTERFACE |
1 x HDMI Type A female Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |

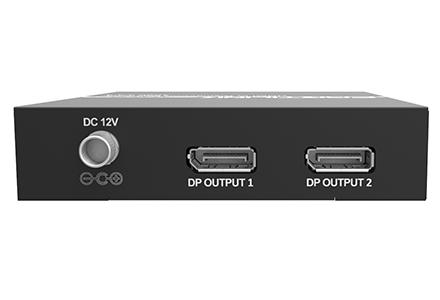

| OUTPUT INTERFACE |
2 x DisplayPort female Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |
| AUDIO | Stereo, 32k~192kHz sampling rate |
| POWER |
DC 12V/2A, locking barrel connector
|
| ENVIRONMENT |
Operating temperature 0~45℃ Operating humidity 20~90% Storage temperature -20~60℃ |
| DIMENSION | 108 x 114 x 24.6 mm (W x L x H) |
| WEIGHT | 356 g |
%E9%80%A3%E6%8E%A5%E5%9C%96_20180124(1).png)

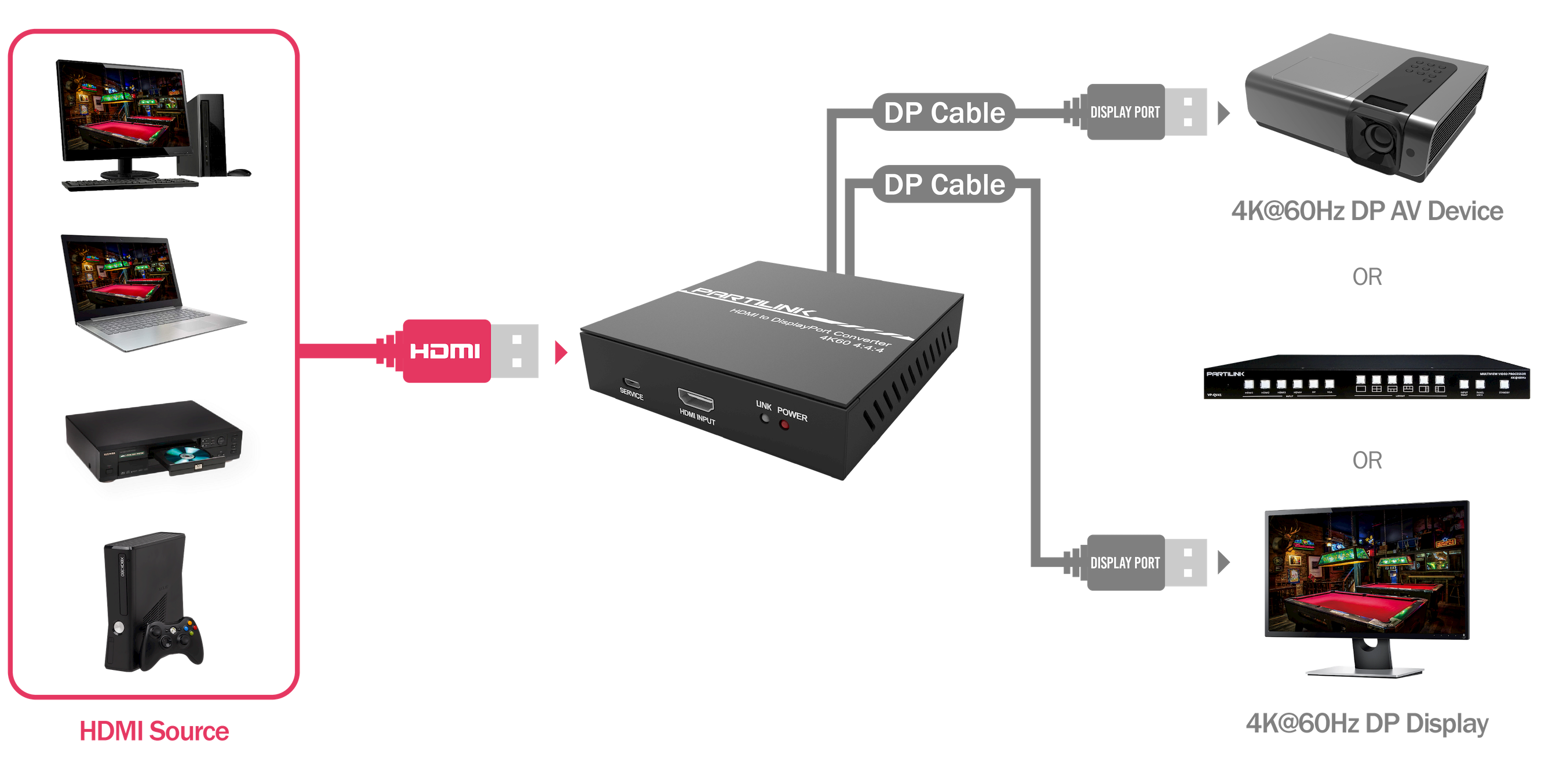

- Connection

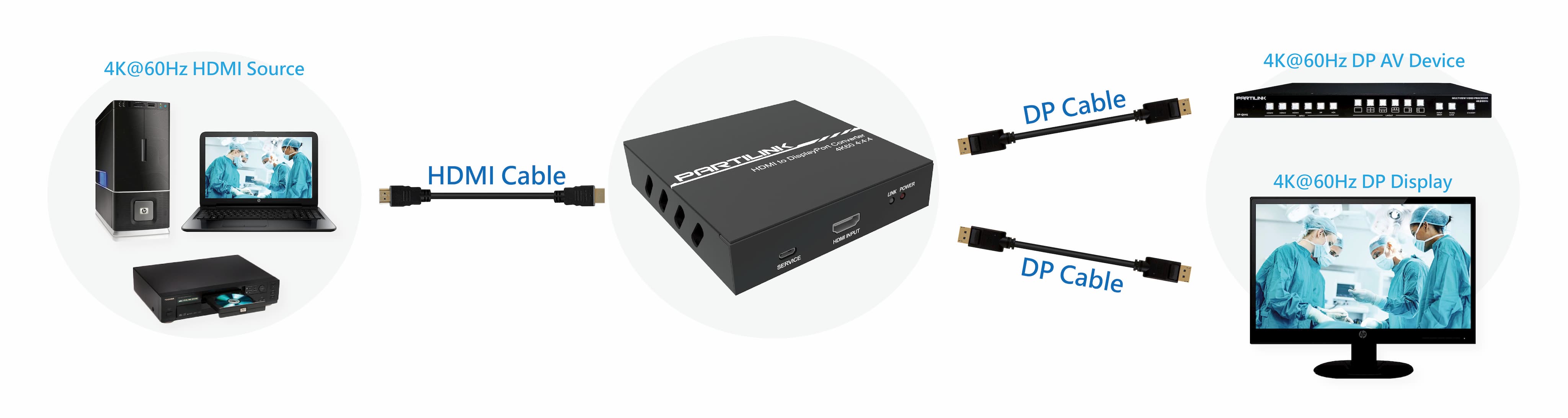

- Various AV device connection as converter
-%B3s%B1%B5%B9%CF(%C2%E5%C0%F8%B1%A1%B9%D2)-01.jpg)

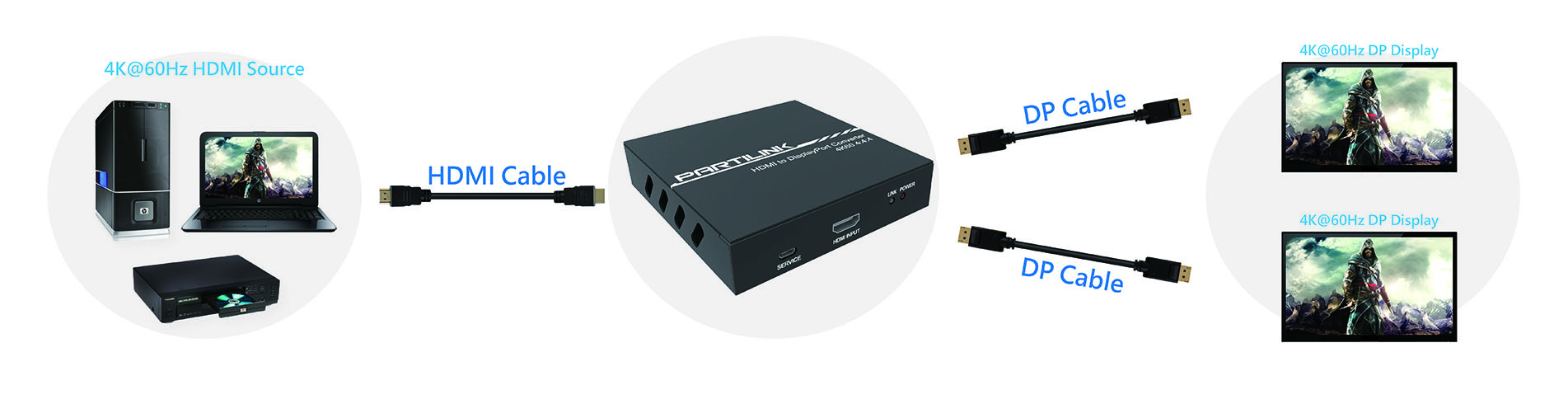

- Clone display as splitter
-%B3s%B1%B5%B9%CF(%B9C%C0%B8%B1%A1%B9%D2)-2-01.jpg)
- Datasheet
/UserFiles/files/P4K2_H1D2_datasheet_EN_191025.pdf
- User Manuel
/UserFiles/files/P4K2-H1D2_user%20manual_20180430.pdf
