Products/Repeater/ Booster/HDMI 2.0 Repeater Dongle (Booster)

HDMI 2.0 Repeater Dongle (Booster)

HRD-11

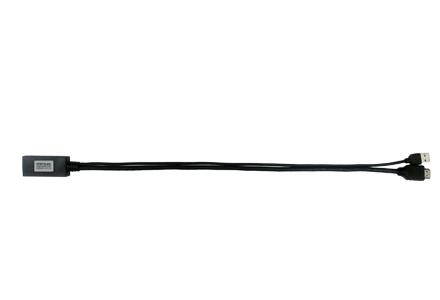

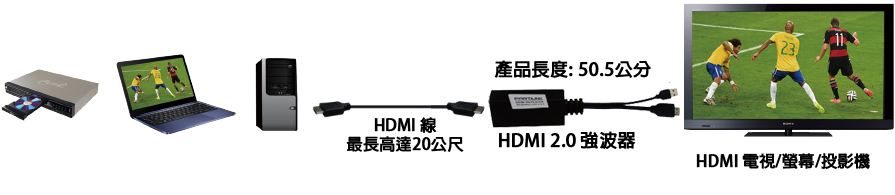

HRD-11 is a HDMI 2.0 repeater dongle (Booster) which has a HDMI source input and built-in two 50cm cable, 1 is HDMI cable for HDMI output and the other is USB cable for repeater power supply. The repeater dongle extends the distance of HDMI 2.0 signal up to 20 meter with HDMI 1.4 or 2.0 compliant cable and deliver HDMI signal to TV or monitor by dongle's 50cm HDMI built-in cable. This repeater dongle regenerates the HDMI signal and cleans out the digital noise for long distance HDMI transmission. It is very easy to use and without any configurations.

HRD-11 is a HDMI 2.0 repeater dongle (Booster) which has a HDMI source input and built-in two 50cm cable, one is HDMI cable for HDMI output and the other is USB cable for repeater power supply. The repeater dongle extends the HDMI 2.0 signal up to 20 meter with HDMI 1.4 or 2.0 compliant cable and delivers HDMI signal to TV or monitor by dongle's 50cm HDMI built-in cable. This repeater dongle regenerates the HDMI signal and cleans out the digital noise for long distance HDMI transmission. It is very easy to use and without any configuration.


Features:



‧ Two 50cm HDMI and USB pigtail for HDMI signal transmission and repeater dongle USB power

  supply

‧ Apply to improve the video quality when source from PC, laptop, DVD player and connecting

  with HDMI display or projector

‧ HDCP 1.4 and 2.2 compliant

‧ Serial data rate up to 6.0 Gbps, capable of supporting ultra-high resolution 4K2K@60Hz format

‧ Retiming capability allows for clean regenerated signals for transmission

‧ Adaptive and programmable input equalization supporting long and short cables

‧ Maintains highest HDMI single link video resolution 4K2K@60Hz 4:4:4

‧ Remove noise generating by long HDMI cable for better video quality

‧ CEC/ ARC pass through

‧  Extension length up to 20 meter on repeater source input

‧ Able to cascade up to 10 units of repeater box
