4K HDMI 2.0 1x2 Splitter
-
P4K2-HH1S2

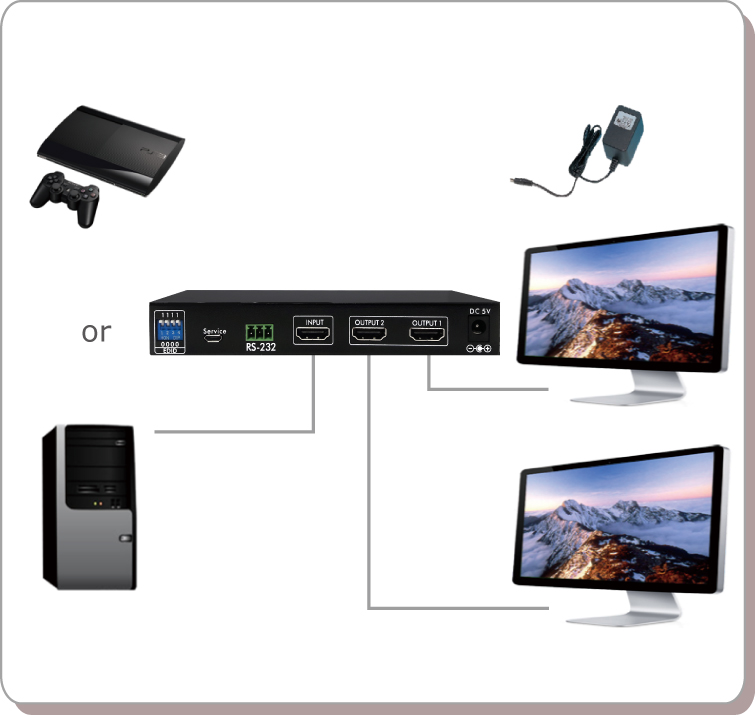

P4K2-HH1S2 is a 1 to 2 HDMI 2.0 Splitter which enables image and sound from your HD satellite receiver, set-top box, games computer or Blu-ray player to be simultaneously shown on 2 screens.
P4K2-HH1S2 is a 1 to 2 HDMI 2.0 Splitter which enables image and sound from your HD satellite receiver, set-top box, games computer or Blu-ray player to be simultaneously shown on 2 screens.
Features:
‧ Support Ultra HD video resolution up to 4K @60Hz 4:4:4 display
‧ Support HDCP 1.4 / 2.2
‧ EDID parsing and copy
‧ Cascade up to 16 layers
‧ Support display HDMI 2.0 YuV 4:4:4 format
‧ Firmware upgradable via micro USB
‧ Support 7.1 CH audio
‧ LED indicator for power and active status
‧ RS232 control
‧ LED indicator for power and active status
‧ RS232 control
| MODEL NO. | P4K2-HH1S2 |
| DESCRIPTION | 4K HDMI 2.0 1x2 Splitter |
| VIDEO INPUT | HDMI x 1 |
| VIDEO OUTPUT | HDMI x 2 |
| HDMI VERSION | HDMI 1.4 and 2.0 compliant |
| HDCP VERSION | HDCP 1.4 / 2.2 |
| RESOLUTION |
HDMI 4K x 2K @60p
HDMI 4K x 2K @60p/1080p/1080i/720p/576p/576i/480p/480i HDMI 1080p 3D @60p |
| COLOR DEPTH | 24bit/30bit/36bit |
| AUDIO FORMAT | LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio |
| DATA RATE | Data transfer throughput 6.0Gbps |
| RS232 control | TxD , RxD , SG |
| OPERATING TEMPERATURE | 0~65℃ |
| OPERATING HUMIDITY | 5%~90% RH |
| POWER SUPPLY | Power jack 2.0mm, DC5V/1A input |
| ESD | ESD protection air gap discharge ±8KV, contact discharged ±4KV |
■ Data sheet
